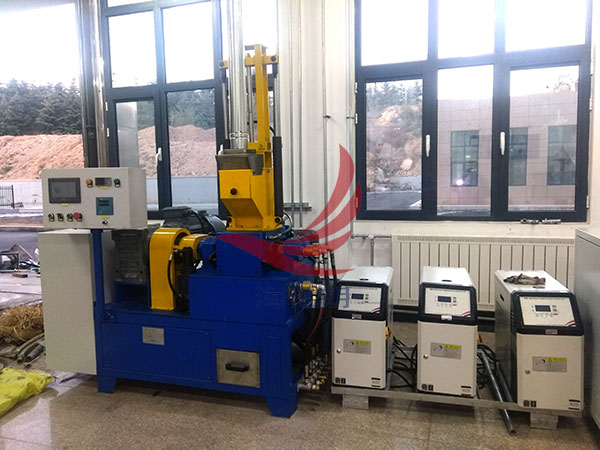

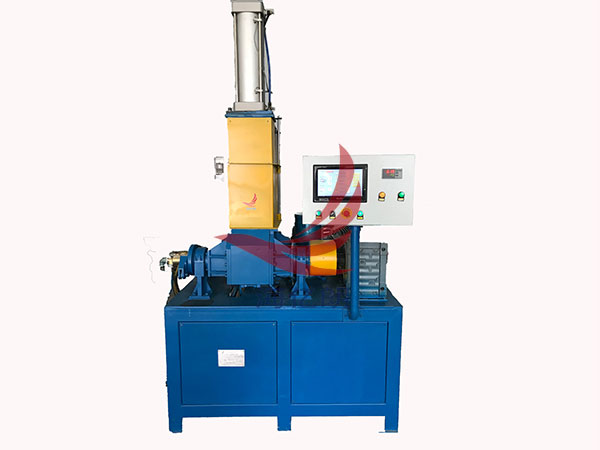

实验密炼机机台 Experimental mixer machine

       本机主要由主机、传动系统、润滑系统、温度控制系统、液压系统、检测系统及电气控制系统等组成。机台特点具有上下对开式的独特结构，可在混炼过程中监测炼胶情况，控制分为手动、半自动，实时检测及显示数据，有温度排料和时间排料控制方法可供选择，对转子转速、上顶栓压力、冷却水温度实行闭环控制。具有集数据检测、处理、对比、计算、显示与一体的PLC控制系统。

       This machine is mainly composed of a main engine, transmission system, lubrication system, temperature control system, hydraulic system, detection system, and electrical control system. The machine features a unique structure with an open top and bottom configuration, which can monitor the rubber mixing process. The control is divided into manual and semi-automatic modes, with real-time detection and display of data. There are temperature discharge and time discharge control methods to choose from, and closed-loop control is implemented for rotor speed, top plug pressure, and cooling water temperature. A PLC control system that integrates data detection, processing, comparison, calculation, and display.

机台主要性能参数

Main performance parameters of the machine

1） 规格型号：X（S）M－0.5LY

1) Specification and model: X (S) M-0.5LY

2） 密炼机总容量：            L                   0.5

2) Total capacity of mixer:    L                  0.5

3） 转子转速：             r/min               最高80

3) Rotor speed:             r/min           maximum 80

4） 两转子速比：                        1:1.12～1:1.16 等各个系列

4) Speed ratio of two rotors:        1:1.12 to 1:1.16 for various series

5） 上顶栓对胶料压力：                                     Mpa                 最大1.0

5) Top bolt pressure on rubber material:             Mpa              maximum 1.0

6） 液压油压力：                     Mpa                8

6) Hydraulic oil pressure:          Mpa                8

7） 主电机功率：           KW                11（变频）

7) Main motor power:     KW       11 (variable frequency)

              8） 转子构型：                                标准四棱

              8) Rotor configuration:            standard four sided

9） 转子密封装置：           液压式拨叉外压端面密封；

9) Rotor sealing device:    hydraulic fork external pressure end face seal;

10） 控制方式：               采用PLC控制，分手动、自动；

10) Control method:   Adopting PLC control, manual and automatic;

11） 转子和密炼室所用材料                                                     堆焊硬质耐磨合金

11) Materials used for rotors and mixing chambers                 Welding hard wear-resistant alloy

12） 检测项目：  转子转速、 上顶栓压力、混炼周期、电机功率、                            混炼温度等。

       12) Testing items: rotor speed, top plug pressure, mixing cycle, motor power, mixing temperature, etc.
