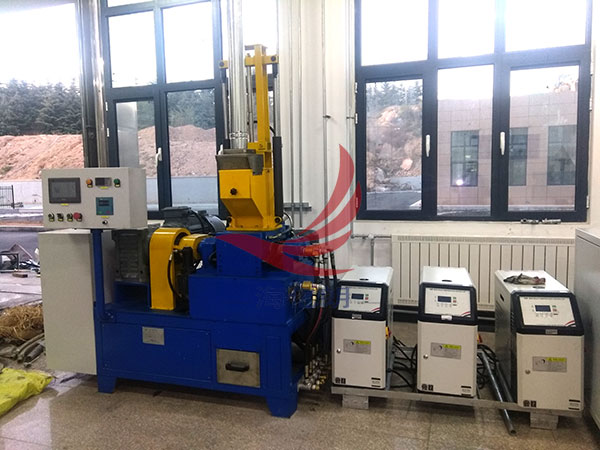

实验密炼机机台1.0L Experimental mixer machine 1.0L

型号：

规格：

品牌：[pp]

应用范围：本机主要由主机、传动系统、润滑系统、温度控制系统、液压系统、检测系统及电气控制系统等组成。该机台具有上下对开式的独特结构，可在混炼过程中监测炼胶情况。

在线咨询服务热线 13306391776

产品简介

产品详情

PRODUCT DETAILS

X(S)M－0.5LY实验密炼机机台

X (S) M-0.5LY experimental mixer machine

本机主要由主机、传动系统、润滑系统、温度控制系统、液压系统、检测系统及电气控制系统等组成。该机台具有上下对开式的独特结构，可在混炼过程中监测炼胶情况。控制操作分为手动、半自动，能实时检测及显示数据。有温度排料和时间排料控制方法可供选择，对转子转速、上顶栓压力、冷却水温度实行闭环控制。具有集数据检测、处理、对比、计算、显示与一体的PLC控制系统。

This machine is mainly composed of a main engine, transmission system, lubrication system, temperature control system, hydraulic system, detection system, and electrical control system. This machine has a unique structure with an open top and bottom, which can monitor the rubber mixing situation during the mixing process. The control operation is divided into manual and semi-automatic, which can detect and display data in real time. There are temperature discharge and time discharge control methods to choose from, which implement closed-loop control of rotor speed, top plug pressure, and cooling water temperature. A PLC control system that integrates data detection, processing, comparison, calculation, and display.

(一) 机台主要性能参数

（1） Main performance parameters of the machine

序号serial number	名称 name	项目 project	参数 parameter
1	规格型号： Specification Model	X（S）M－1.0LY X（S）M－1.0LY
2	密炼机总容量： Total capacity of internal mixer:	L	1.0
3	转子转速： Rotor speed:	r/min	0～80
4	两转子速比： Two rotor speed ratio:		1:1.12～1:1.16 等各个系列 1: Various series such as 1.12 to 1:1.16
5	上顶栓对胶料压力： Pressure of the top bolt on the rubber material:	Mpa	≤ 1.0
6	液压油压力： Hydraulic oil pressure:	Mpa	≤ 16
7	主电机功率： Main motor power:	KW	18（变频） 18 (frequency conversion)
8	转子构型： Rotor configuration:		标准四棱 Standard Four Edges
9	转子密封装置： Rotor sealing device:		液压式拨叉外压端面密封； Hydraulic fork external pressure end face seal;
10	控制方式： Control method:		手动、自动 manual, automatic
11	转子和密炼室所用材料 Materials used for rotors and mixing chambers		堆焊硬质耐磨合金 Welding hard wear-resistant alloy
12	检测项目： Testing items:		转子转速、上顶栓压力、混炼周期、电机功率、混炼温度等。 Rotor speed, top plug pressure, mixing cycle, motor power, mixing temperature, etc.
